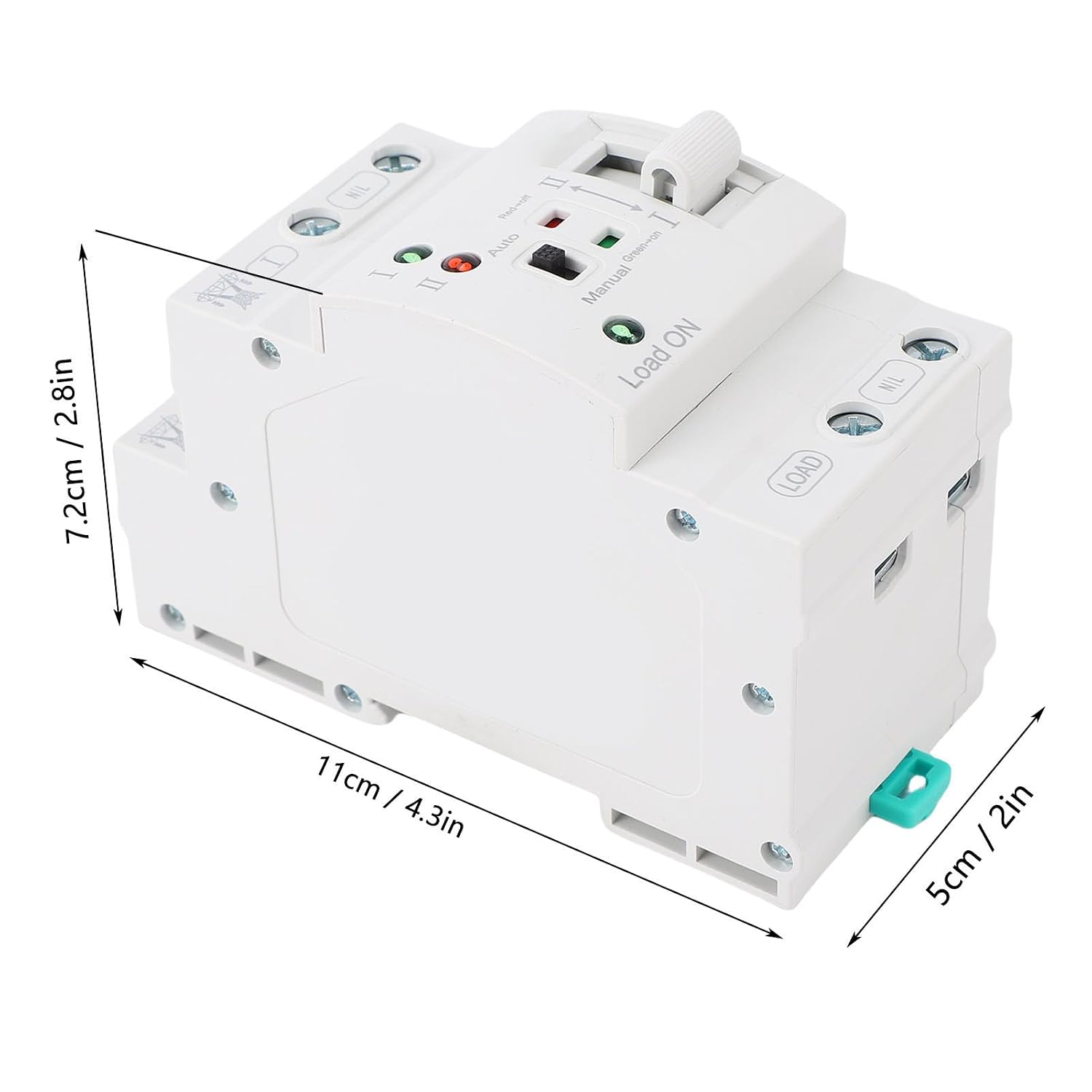

Garosa Automatic Transfer Switch 2P 63A Dual Power ATS with Manual Override 20ms Switching DIN Rail Mount for Generator Backup Home Emergency Power Systems
Product details
| Management number | 247559352 | Release Date | 2026/08/16 | List Price | US$13.37 | Model Number | 247559352 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Spec: Item Type: Dual Power Automatic Transfer Switch Material: PC Flame Retardant, Silver Rated Current Le: 63A Impulse Voltage Uimp: 8KV Frequency: 50/60HZ Switching Time: 20ms Grade: PC Grade Specification: 2P Rated Short Circuit Current: 50kA Rated Control Voltage Us: 50HZ, Normal Operating Conditions: 85% Us -110% Us Auxiliary Circuit: 50HZ Life: Electrical: ≥1500 Times; Mechanical: ≥6000 Times Usage Category: AC-31B How to Use: Use according to the instructions in the manual. PackageList: 1 x Dual Power Automatic Transfer Switch 1 x User Manual
- Main Function: ATS transfer switch is a PC level infrequent switching switch, mainly used for automatic or manual conversion of two power supplies, and can detect whether the commonly used power supply or backup power supply is normal.
- Two Operation Modes: For automatic mode, place the left switch in Auto mode and the right handle in I mode to automatically switch power. For manual mode, place the left switch in Manual mode, and manually operate the right handle to select the power supply.
- Millisecond Switching: The ATS can switch power supply (mains or inverter) within 20ms. When the common power supply malfunctions, the backup power supply is immediately put into use, ensuring the continuity of power supply.
- 2P ATS: The input terminal can connect 1 neutral wire (N) and 1 live wire (L), designed specifically for home rail installation, suitable for PZ30 distribution box. This automatic transfer switches is suitable for 50/60Hz dual power grids.
- Wide Application: This dual power automatic transfer switch is suitable for cold storage, data centers, emergency systems, etc. automatically and quickly switches to the backup power source to ensure safe and reliable power supply.
| ASIN | B0GJTHJLHG |
|---|---|
| Model | Garosacr4lnmtja6 |
| Terminal | See Details |
| Brand Name | Garosa |
| Unit Count | 1 Count |
| Part Number | Garosacr4lnmtja6 |
| Switch Type | Toggle |
| Circuit Type | 4-yönlü |
| Contact Type | Metal |
| Manufacturer | Garosa |
| Material Type | Polycarbonate |
| Mounting Type | Wall Mount |
| Connector Type | Usb_2_0 |
| Current Rating | 2 A |
| Operation Mode | ON-OFF |
| Item Dimensions | 4.72 x 3.93 x 3.54 inches |
| Number of Items | 1 |
| Contact Material | See Details |
| Operating Voltage | 12 volts |
| Specification Met | ISO 9001 |
| Included Components | no |
| Number of Positions | 1 |
| Lower Temperature Rating | 100 Kelvin |
| Upper Temperature Rating | 500 Kelvin |
| International Protection Rating | IP20 |
