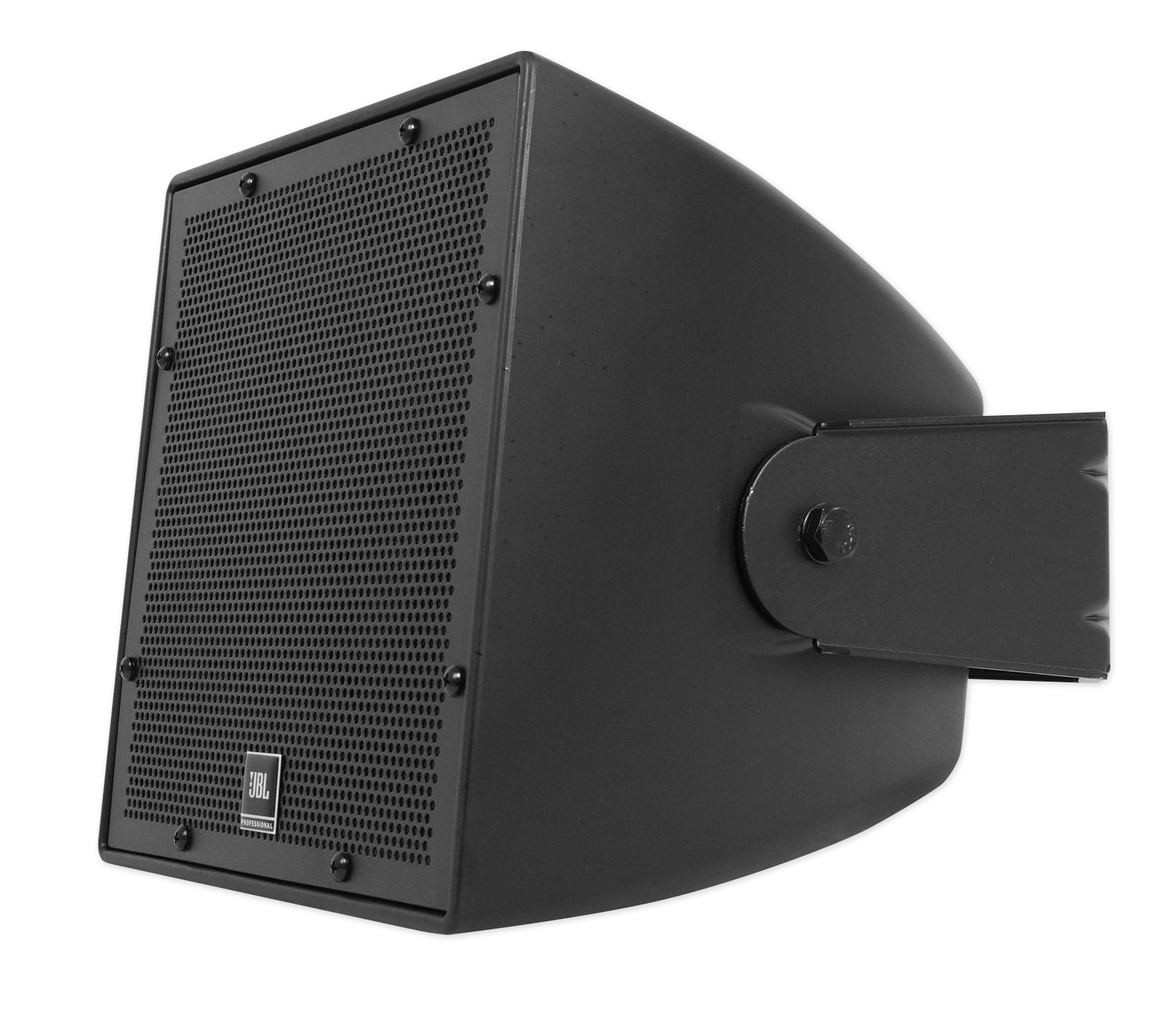

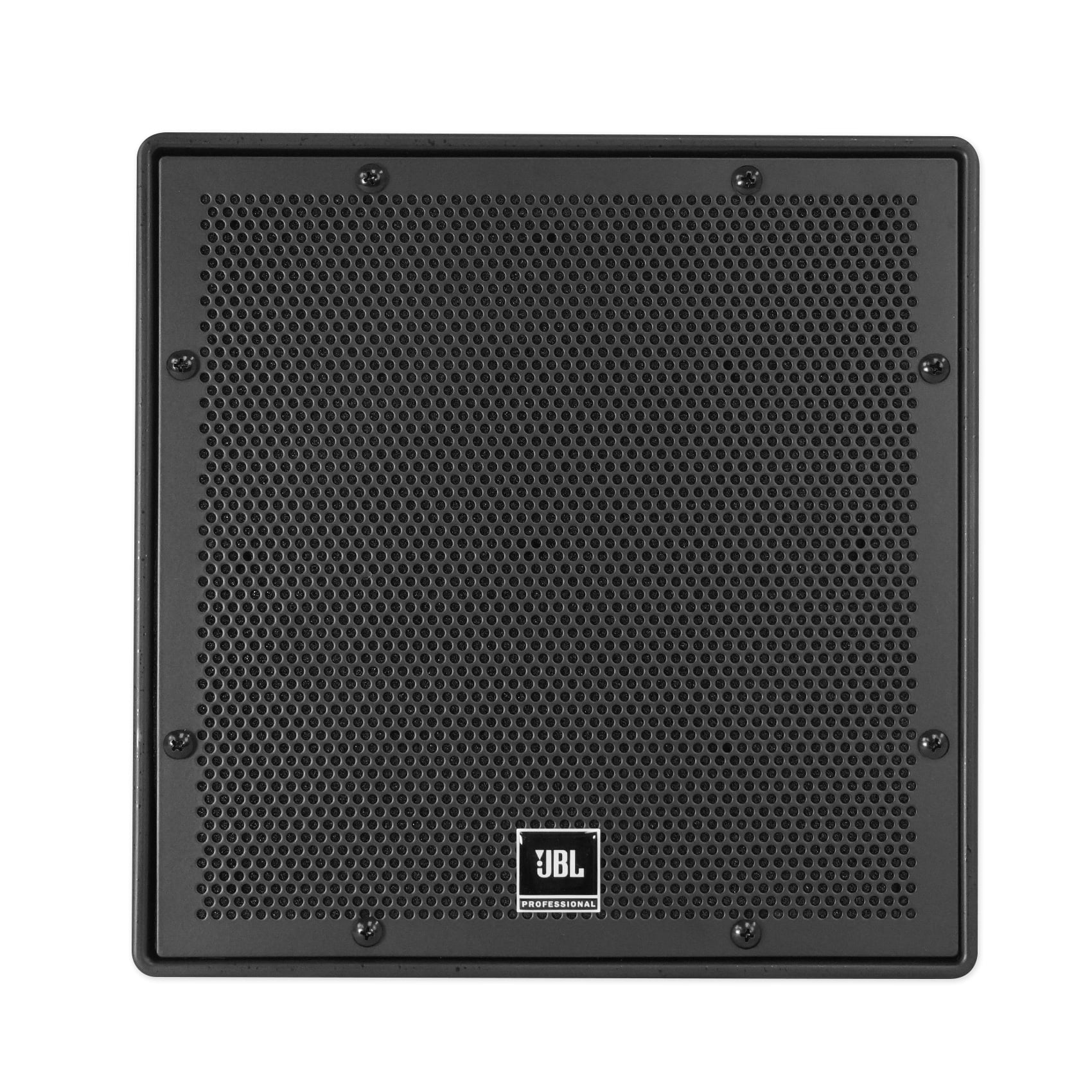

(2) JBL AWC62-BK 6.5" 120 Watt Black Indoor/Outdoor 70V Commercial Speakers

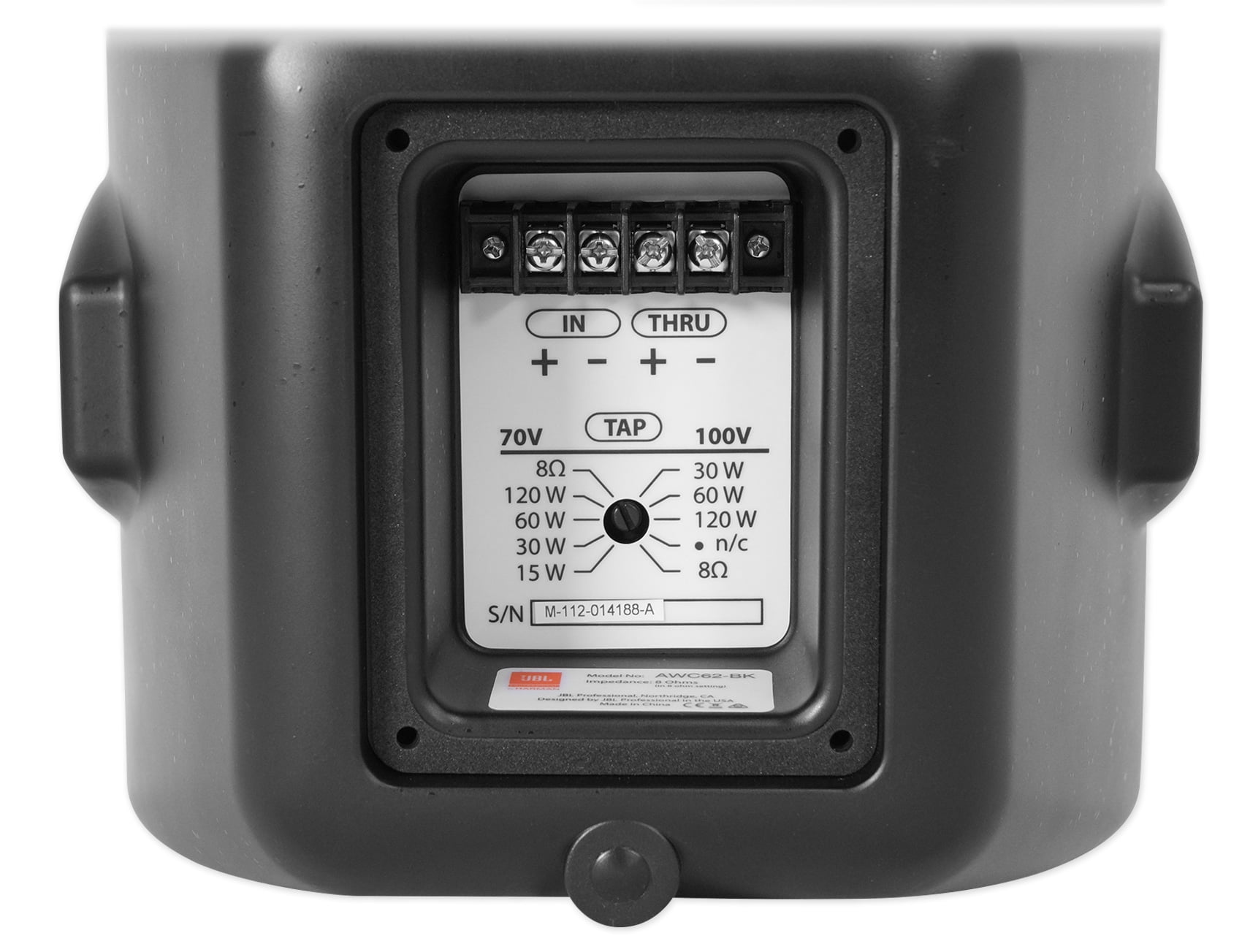

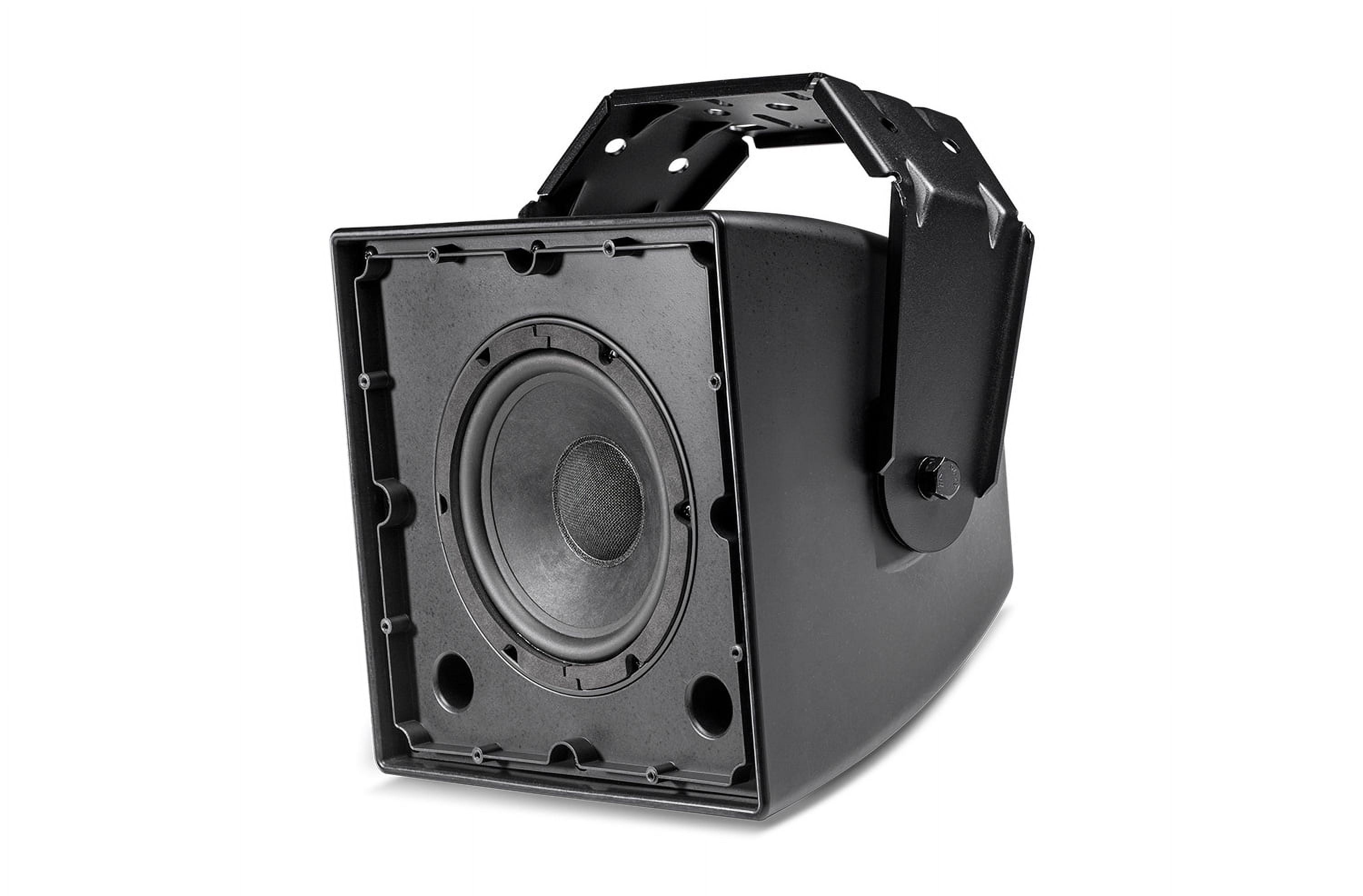

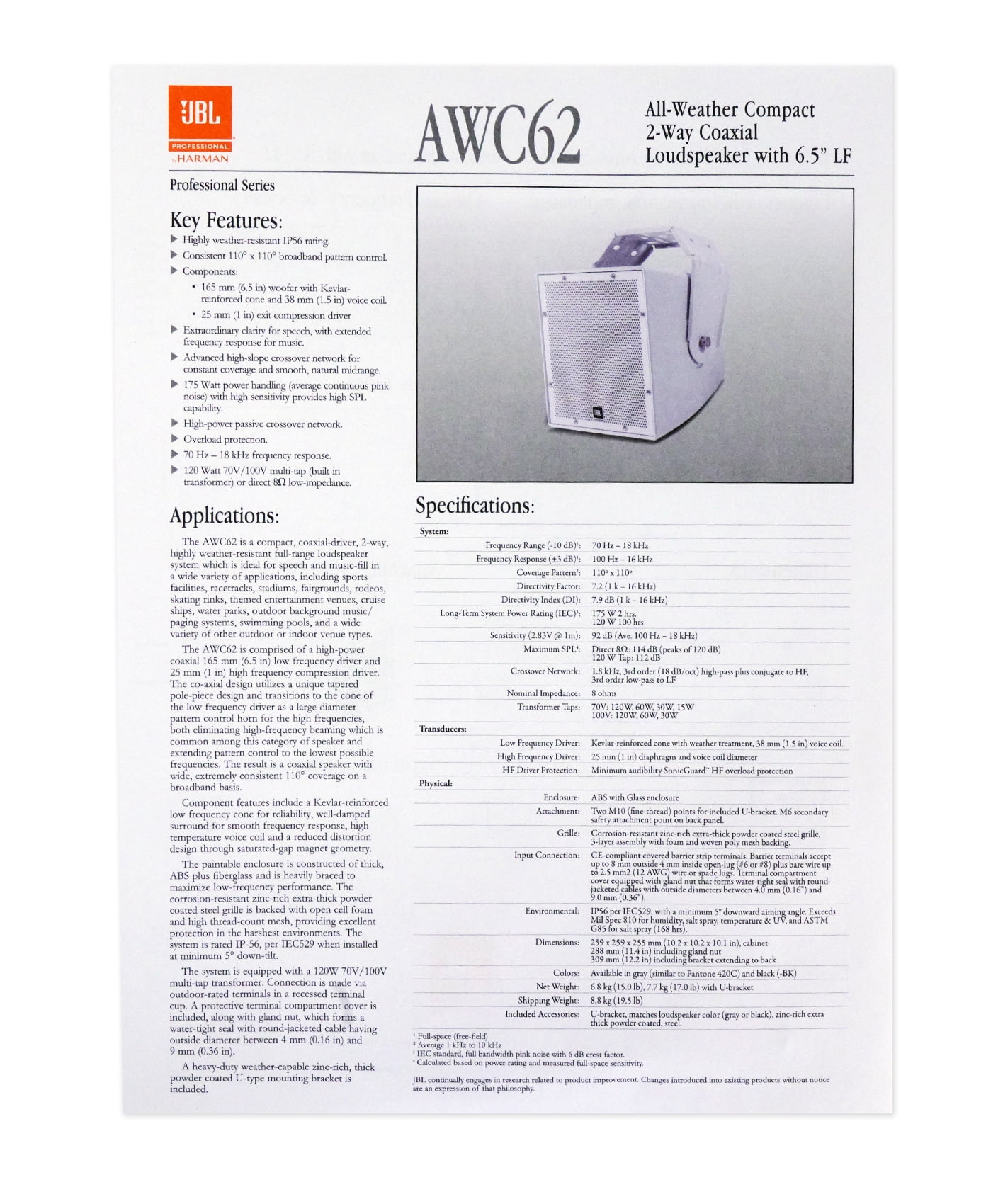

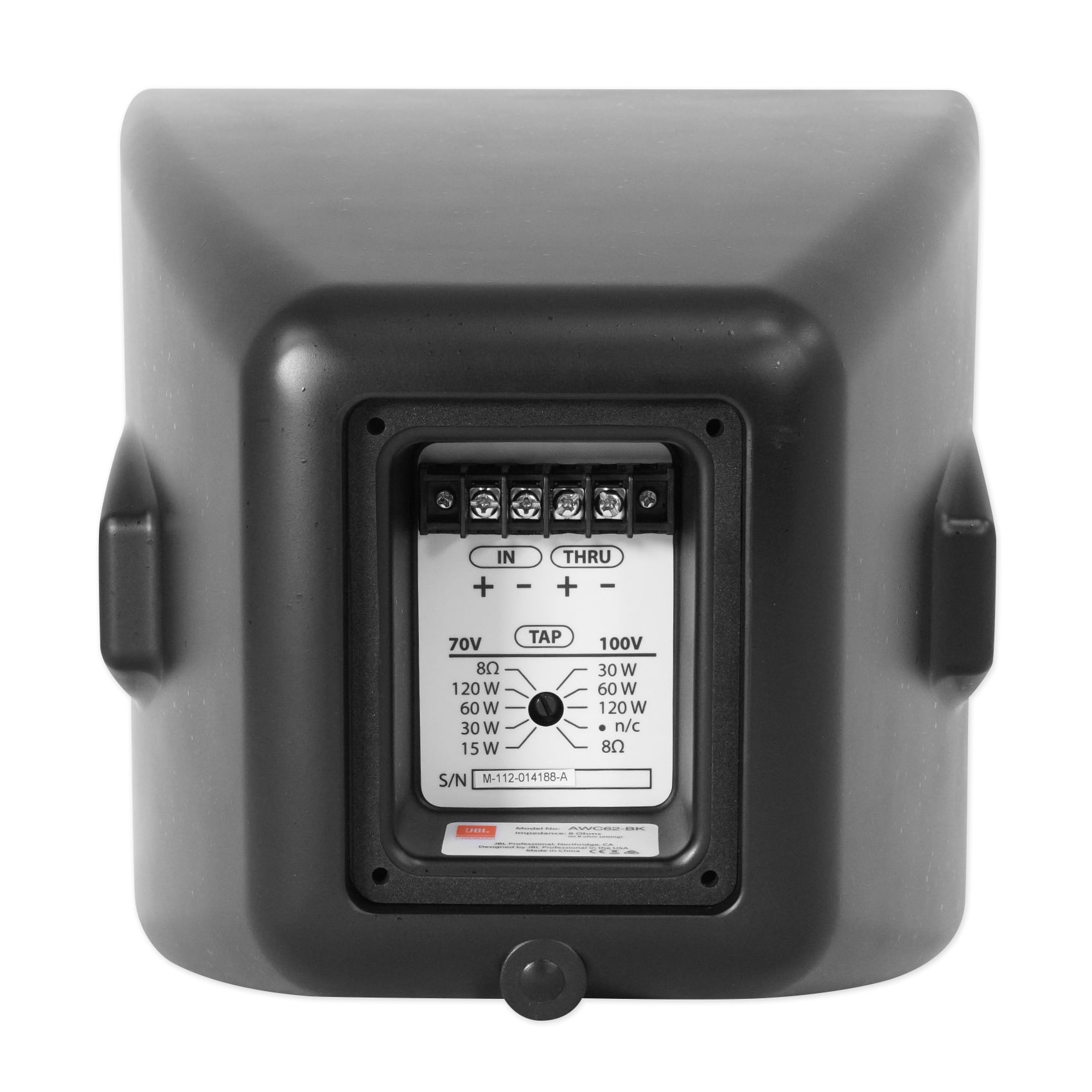

Package Includes: (2) JBL AWC62-BK 6.5 120w Black Indoor/Outdoor 70V Surface Mount Commercial Speaker Description: All-Weather Compact 2-Way Coaxial Loudspeaker with 6.5 LF. Features: Highly weather-resistant IP56 rating. Consistent 110° x 110° broadband pattern control. Components: 165 mm (6.5 in) woofer with Kevlar-reinforced cone and 38 mm (1.5 in) voice coil. 25 mm (1 in) exit compression driver Extraordinary clarity for speech, with extended frequency response for music. Advanced high-slope crossover network for constant coverage and smooth, natural midrange. 175 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability. High-power passive crossover network. Overload protection. 70 Hz – 18 kHz frequency response. 120 Watt 70V/100V multi-tap (built-in transformer) or direct 8O low-impedance. Specifications: Frequency Range (-10dB): 70 Hz – 18 kHz Frequency Response (±3 dB): 100 Hz – 16 kHz Coverage Pattern: 110º x 110º Directivity Factor (Q): 7.2 (1 k – 16 kHz) Directivity Index (DI): 7.9 dB (1 k – 16 kHz) System Power Rating: 175 W 2 hrs. 120 W 100 hrs (IEC rated) Sensitivity (2.83V @ 1m): 92 dB (Ave. 100 Hz – 18 kHz) Maximum SPL (1m): Direct 8O: 114 dB (peaks of 120 dB)120 W Tap: 112 dB Crossover Network: 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 3rd order low-pass to LF Nominal Impedance: 8 ohms Transformer Taps: 70V: 120W, 60W, 30W, 15W 100V: 120W, 60W, 30W LF Driver: Kevlar-reinforced cone with weather treatment, 38 mm (1.5 in) voice coil. HF Driver: 25 mm (1 in) diaphragm and voice coil diameter HF Driver Protection: Minimum audibility SonicGuard™ HF overload protection Enclosure: ABS with Glass enclosure Attachment: Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel. Grille: Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing. Input Connection: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round- jacketed cables with outside diameters between 4.0 mm (0.16”) and 9.0 mm (0.36”). Environmental: IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs) Dimensions: 259 x 259 x 255 mm (10.2 x 10.2 x 10.1 in), cabinet 288 mm (11.4 in) including gland nut 309 mm (12.2 in) including bracket extending to back Colors: Available in gray (similar to Pantone 420C) and black (-BK) Net Weight (each): 6.8 kg (15.0 lb), 7.7 kg (17.0 lb) with U-bracket Shipping Weight: 8.8 kg (19.5 lb) Included Accessories: U-bracket, matches loudspeaker color (gray or black), zinc-rich extra thick powder coated, steel. Crossover Modes: Passive System Sensitivity (1w @ 1m): 92 dB (Ave. 100 Hz – 18 kHz Suspension Attachment: Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
